Marzouk Steel, located in Tunis, Tunisia, has built a solid reputation as a reliable manufacturer and supplier of HB 400 steel sheets and plates, catering to the construction, engineering, and heavy machinery sectors. With state-of-the-art manufacturing facilities and rigorous quality control measures, Marzouk Steel guarantees consistent thickness, top-notch surface quality, and dependable mechanical properties. The company offers customized dimensions, prompt delivery, and technical support, all while adhering to international standards for structural steel. Their HB 400 steel sheets and plates are known for their high strength, durability, and wear resistance, making them a trustworthy option for demanding applications that need long-lasting performance in tough environments.

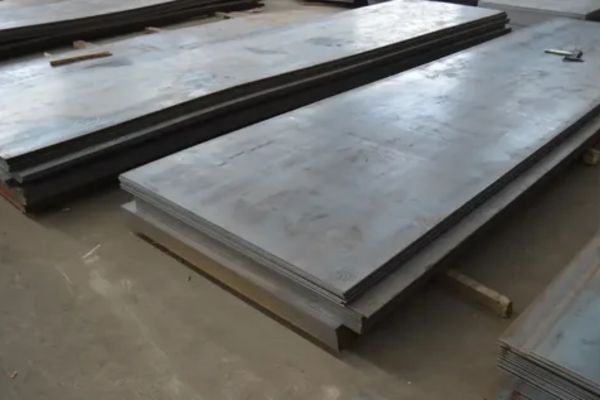

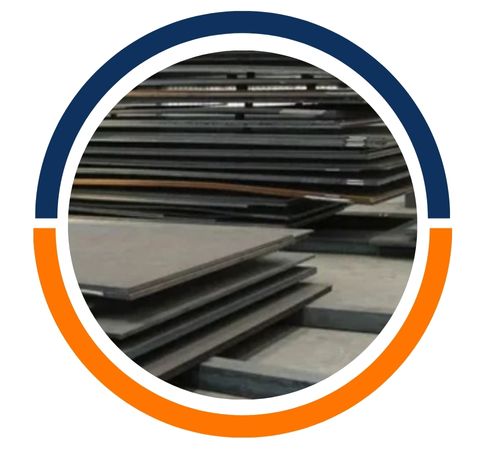

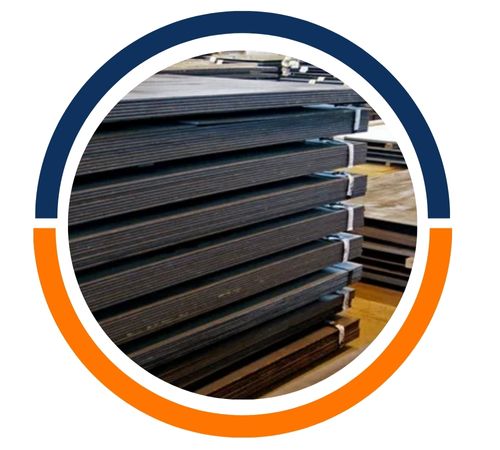

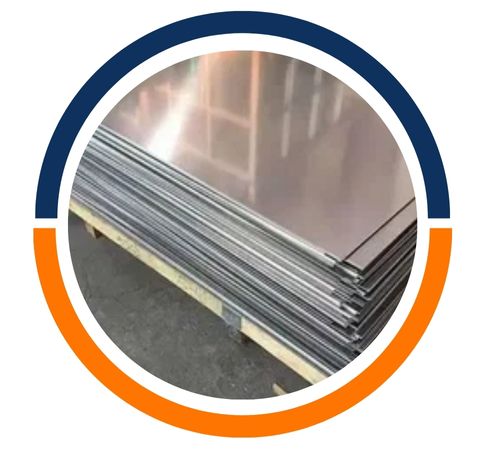

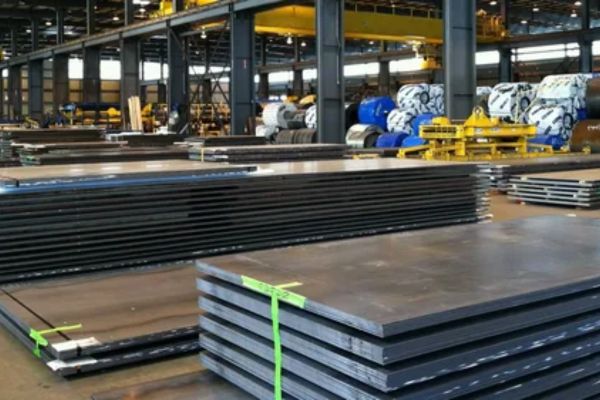

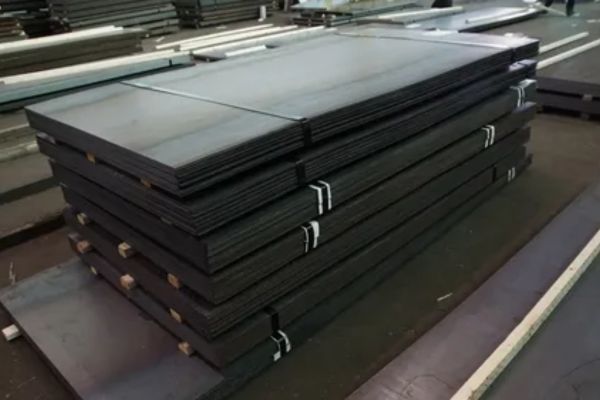

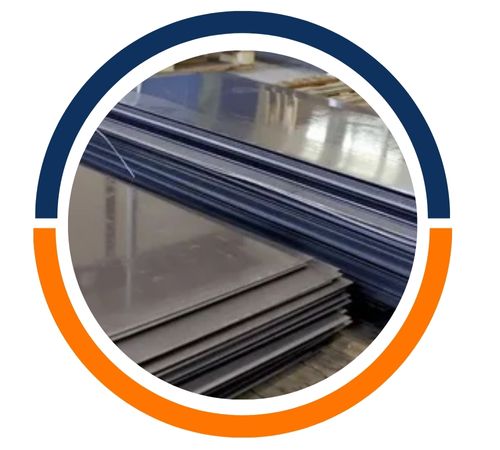

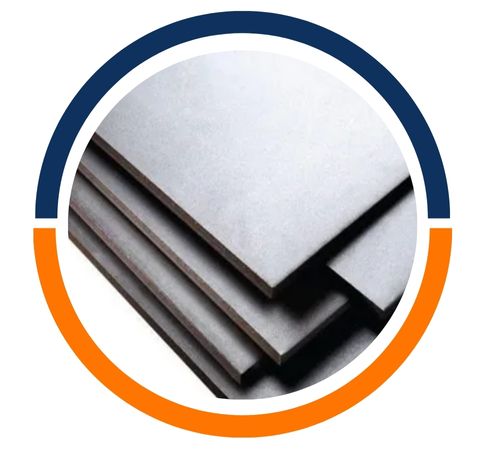

HB 400 Sheets and Plates consist of abrasion-resistant steel with a nominal hardness of 400 HBW. Their chemical composition generally consists of carbon, manganese, chromium, and boron, which imparts high wear resistance and strength. These plates have high tensile strength, impact toughness, and high elongation, and thus are apt for critical applications. Benefits are increased life of service, less maintenance, and better operation under abrasive conditions like mining, construction, and heavy equipment, with cost-effectiveness and operating reliability.
Width:Â 500-3000mm
Thickness :Â 3-130mm
Length:Â 1000-12000mm
Heat Treatment:Â N, Q+T
Surface Paint:Â EP, PE, HDP, SMP, PVDF
| Hardened 400 Chemical Composition (%) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Plate | C | Si | Mn | P | S | Cr | Ni | Mo | B | CEV | CET |
| thickness mm | max % | max % | max % | max % | max % | max % | max % | max % | max % | typv | typv |
| 3- 6 | 0.15 | 0.70 | 1.60 | 0.025 | 0.01 | 0.50 | 0.25 | 0.25 | 0.004 | 0.41 | 0.28 |
| 3-（8） | 0.15 | 0.70 | 1.60 | 0.025 | 0.01 | 0.30 | 0.25 | 0.25 | 0.004 | 0.33 | 0.23 |
| 8 – 20 | 0.15 | 0.70 | 1.60 | 0.025 | 0.01 | 0.50 | 0.25 | 0.25 | 0.004 | 0.37 | 0.27 |
| （20）-32 | 0.18 | 0.70 | 1.60 | 0.025 | 0.01 | 1.00 | 0.25 | 0.25 | 0.004 | 0.48 | 0.29 |
| （32）-45 | 0.22 | 0.70 | 1.60 | 0.025 | 0.01 | 1.40 | 0.50 | 0.60 | 0.004 | 0.57 | 0.31 |
| （45）-51 | 0.22 | 0.70 | 1.60 | 0.025 | 0.01 | 1.40 | 0.50 | 0.60 | 0.004 | 0.57 | 0.38 |
| （51）-80 | 0.27 | 0.70 | 1.60 | 0.025 | 0.01 | 1.40 | 1.00 | 0.60 | 0.004 | 0.65 | 0.41 |
| （80）-130 | 0.32 | 0.70 | 1.60 | 0.025 | 0.01 | 1.40 | 1.50 | 0.60 | 0.004 | 0.73 | 0.48 |
| Mechanical properties of Hardened 400 | |||||
|---|---|---|---|---|---|
| Grade | Mechanical Property | Charpy V Impact Test | |||
| HARDOX 400 | Yield | Tensile | Elongation | Degree | longitudinal |
| Min Mpa | Mpa | Min % | -40 | J | |
| 1000 | 1250 | 10 | 45 | ||
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Thickness (mm) | Product | Hardness Range (HBW) |
|---|---|---|
| 2.5 – 6.4 | Cut Lengths | 360 – 420 |
| 5 – 15 | Heavy Plates | 360 – 420 |
| 15- 30 | Heavy Plates | 360 – 450 |
| 30 – 60 | Heavy Plates | 360 – 480 |
You’ll find HB 400 steel sheets and plates being widely used in heavy construction, machinery manufacturing, and various infrastructure projects. They’re commonly found in bridges, industrial flooring, cranes, heavy-duty equipment, earthmoving machinery, and structural components that face high stress or abrasion. Additionally, they play a crucial role in the fabrication of load-bearing frames, reinforced structures, and steel frameworks that demand high strength and wear resistance. Thanks to their mechanical durability and toughness, HB 400 sheets and plates deliver long-term reliability, structural safety, and cost-effective performance in the demanding environments of industry and construction.
