Marzouk Steel is a trusted manufacturer and supplier located in Tunis, Tunisia, dedicated to providing top-notch steel solutions for tough industrial applications. They focus on Abrasion Resistant Hardox 500 Pipes, which are specifically engineered to excel in extreme wear conditions. Thanks to their cutting-edge manufacturing techniques and rigorous quality control, Marzouk Steel delivers durable and precise pipe solutions for various industries, including mining, cement, construction, and material handling. Their unwavering commitment to technical excellence and customer-centric service guarantees long-lasting products that enhance equipment performance, minimize maintenance needs, and ensure consistent reliability even in harsh operating environments.
The Abrasion Resistant Hardox 500 Pipes are crafted from quenched and tempered steel, featuring a carefully controlled chemical makeup that includes carbon, manganese, silicon, chromium, nickel, and molybdenum. This well-balanced composition results in a nominal hardness of around 500 HBW, along with impressive tensile and yield strength. These pipes exhibit outstanding abrasion resistance, robust impact toughness, and dependable structural stability, enabling them to function effectively under heavy mechanical stress, high wear rates, and challenging industrial service conditions.
| Item | Carbon Structural Steel Plates – ASTM A36 |
|---|---|
| Thickness | 5mm-150mm |
| Width | 1000mm-4500mm |
| Length | 3000mm-18000mm |
| Grade | C | Si | Mn | P | S |
| ASTM A36 | 0.25 max. | 0.4 max. | 0.8-1.2 | 0.035 max. | 0.035 max. |
| Tensile strength, kis [MPa] | Yield strength, min, kis [MPa] | Elongation in 8 in. [200 mm], min, % | Elongation in 2 in. [50 mm], min, % |
| 58-80 [400-550] | 36 [250] | 20 | 23 |
| EN | GB | USA | BS | ISO | JIS | IS |
| S235J2G4, Fe360D2 | Q235D | A36 | 40EE | Fe 360B | SM 400 A | IS 226 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

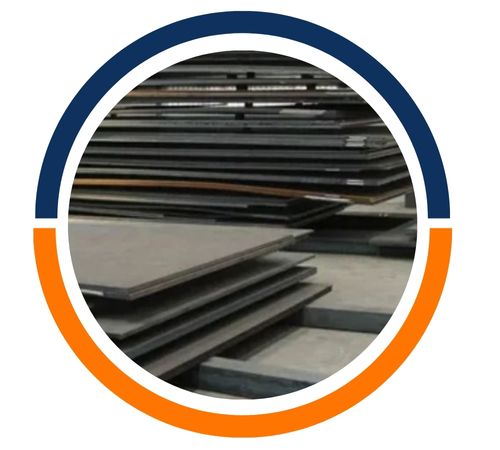

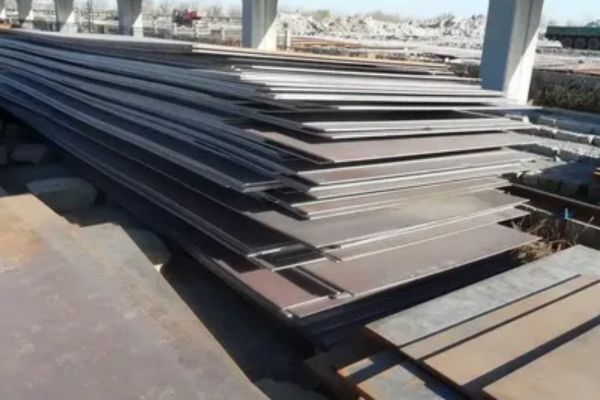

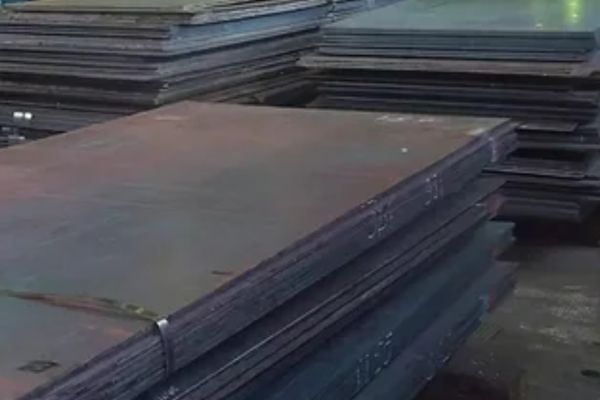

Marzouk Steel is one of the most prominent manufacturers and suppliers of superior quality A36 Steel Sheet and Plate in Tunis, Tunisia. As experts in steel solutions, we supply a complete spectrum of products like Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our product range comprises Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Known for our reliable delivery and first-rate customer service, we are committed to supplying high-quality steel materials that guarantee durability and excellent performance in numerous industrial applications.Â
| Thickness (Inches) | Tolerance Over Specified Thickness, For Widths Given, in Inches | |||||||||
| 48 to 59 | 144 to 167 | Thru 47 | 60 to 71 | 96 to 107 | 72 to 83 | 132 to 143 | 120 to 131 | 108 to 119 | 84 to 95 | |
| To under 1/4 | 0.030 | – | 0.030 | 0.030 | 0.030 | 0.030 | 0.040 | 0.030 | 0.030 | 0.030 |
| 1/4 to under 5/16 | 0.030 | – | 0.030 | 0.030 | 0.030 | 0.030 | 0.040 | 0.040 | 0.030 | 0.030 |
| 2 to under 3 | 0.090 | 0.150 | 0.090 | 0.090 | 0.110 | 0.100 | 0.140 | 0.130 | 0.120 | 0.100 |
| 3/8 to under 5/8 | 0.030 | 0.060 | 0.030 | 0.030 | 0.030 | 0.030 | 0.050 | 0.040 | 0.040 | 0.030 |
| 5/16 to under 3/8 | 0.030 | 0.050 | 0.030 | 0.030 | 0.030 | 0.030 | 0.040 | 0.040 | 0.030 | 0.030 |
| 6 to under 10 | 0.240 | 0.270 | 0.230 | 0.240 | 0.240 | 0.240 | 0.240 | 0.240 | 0.240 | 0.240 |
| 3/4 to under 1 | 0.030 | 0.070 | 0.030 | 0.030 | 0.040 | 0.030 | 0.060 | 0.050 | 0.050 | 0.040 |
| 1 to under 2 | 0.060 | 0.110 | 0.060 | 0.060 | 0.070 | 0.060 | 0.100 | 0.100 | 0.080 | 0.060 |
| 3 to under 4 | 0.110 | 0.150 | 0.110 | 0.110 | 0.130 | 0.110 | 0.140 | 0.140 | 0.140 | 0.110 |
| 4 to under 6 | 0.150 | 0.200 | 0.150 | 0.150 | 0.150 | 0.150 | 0.150 | 0.150 | 0.150 | 0.150 |
| ASTM | Thickness (mm) | Weight (kg/m) |
| ASTM A36 | 3 mm | 23.55 kg |
| 4 mm | 31.4 kg | |
| 5 mm | 39.25 kg | |
| 6 mm | 47.1 kg | |
| 8 mm | 62.8 kg | |
| 10 mm | 78.5 kg | |
| 12 mm | 94.2 kg | |
| 16 mm | 125.6 kg | |
| 20 mm | 157 kg | |
| 22 mm | 172.7 kg | |
| 25 mm | 196.25 kg | |
| 28 mm | 219.8 kg | |
| 32 mm | 251.2 kg | |
| 36 mm | 282.6 kg | |
| 40 mm | 314 kg | |
| 45 mm | 353.25 kg | |
| 50 mm | 392.5 kg | |
| 55 mm | 431.75 kg | |
| 60 mm | 471 kg | |
| 65 mm | 510 kg | |
| 70 mm | 549.5 kg | |
| 75 mm | 588.75 kg | |
| 80 mm | 628 kg | |
| 90 mm | 706.5 kg | |
| 100 mm | 785 kg |
| TYPE | ALLOY | IMPERIAL SIZES IN STOCK | Â | Â |
|---|---|---|---|---|
| Â | Â | Thickness | Length | Width |
| Coil | ASTM A36 | 1/4 Inch, 3/16 Inch, 3/8 Inch, 5/16 Inch, 1/2 Inch, 7/16 Inch | Any | 60 Inch, 48 Inch,72 Inch |
| Cut to Length | 3/16 Inch to 1/2 Inch | Any | 84 Inch to 96 Inch | |
| Â | 3/16 Inch to 1/2 Inch | Any | 96 Inch, 84 Inch | |
| Hot Rolled (Strip Mill) | 3/8 Inch to 12 Inch | 240 Inch – 480 Inch | 72 Inch to 144 Inch | |
| Discrete (Mill Rolled) | 1/4 Inch, 3/16 Inch, 5/16 Inch | 240 Inch – 480 Inch | 84 Inch to 120 Inch |
You’ll find Abrasion Resistant Hardox 500 Pipes widely used in industries that face severe abrasion and material erosion. They’re commonly found in mining and quarrying operations, slurry pipelines, cement plants, bulk material handling systems, and industrial conveyors. Additionally, they’re perfect for chutes, hydraulic lines, and dredging systems where durability is essential. Their exceptional wear resistance and strength contribute to a longer service life, reduced downtime, and lower replacement and maintenance costs, making them a smart and cost-effective choice for heavy-duty applications.
Â
Marzouk Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Tunis, Tunisia.
