Marzouk Steel, located in Tunis, Tunisia, has earned a solid reputation as a reliable manufacturer and supplier of top-notch carbon steel products, including Carbon Steel A694 Flanges. The company is dedicated to delivering materials that adhere to international standards, ensuring consistent quality, durability, and reliability. With state-of-the-art manufacturing facilities, rigorous quality control, and a wealth of technical expertise, Marzouk Steel produces flanges that are not only precise and strong but also perfectly suited for demanding applications in industries like oil and gas and pipeline construction. Their commitment to performance and timely delivery makes them a go-to partner for projects that require high-performance carbon steel flanges.
When it comes to Carbon Steel A694 Flanges, they are crafted with a meticulously controlled chemical composition, which typically includes carbon, manganese, phosphorus, sulfur, and a few trace alloying elements. This careful formulation results in high strength, excellent toughness, and impressive resistance to wear and mechanical stress. On the mechanical side, A694 flanges boast superior tensile and yield strength, good hardness, and dependable performance even under high-pressure and high-temperature conditions, making them ideal for critical pipeline applications.
| Specifications | ASTM A694 / ASME SA694 |
| Dimensions | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Standard | ANSI, ASME, BS, DIN, EN etc. |
| Grades | F42, F46, F52, F60, F65, F70, A36, A516 Gr. 70,60 |
| Size | 1/2″ to 48″ |
| Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |

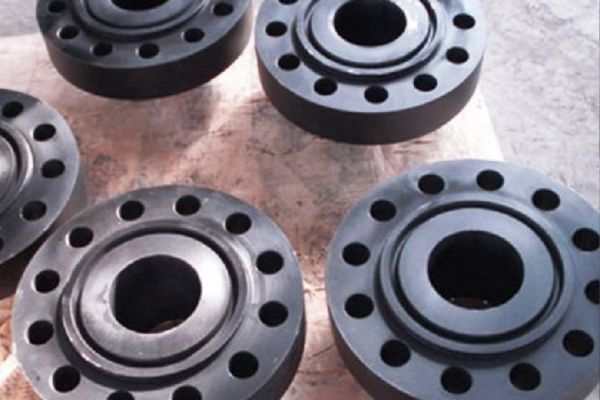

| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Element | F42 Content, % | F52 Content, % | F60 Content, % | F65 Content, % | F70 Content, % |
| Carbon (C) | 0.13~0.20 | 0.16~0.22 | 0.17~0.23 | 0.17~0.23 | 0.06~0.10 |
| Silicon (Si) | 0.20~0.40 | 0.15~0.40 | 0.15~0.40 | 0.15~0.40 | 0.20~0.40 |
| Manganese (Mn) | 1.20~1.60 | 1.10~1.40 | 1.20~1.50 | 1.30~1.60 | 1.10~1.40 |
| Phosphorous (P) | ≤ 0.030 | ≤ 0.025 | ≤ 0.020 | ≤ 0.025 | ≤ 0.020 |
| Sulfur (S) | ≤ 0.020 | ≤ 0.012 | ≤ 0.012 | ≤ 0.015 | ≤ 0.010 |
| Molybdenum (Mo) | 0.20~0.35 | 0.45~0.60 | 0.45~0.65 | 1.20~1.70 | |
| Nickel (Ni) | ≤ 0.30 | ≤ 0.50 | 0.40~1.00 | ≤ 0.30 | 0.20~0.40 |
| Chromium (Cr) | ≤ 0.30 | ≤ 0.30 | ≤ 0.25 | ≤ 0.30 | ≤ 0.30 |
| Copper (Cu) | ≤ 0.25 | ≤ 0.25 | ≤ 0.25 | ≤ 0.25 | ≤ 0.25 |
| Vanadium (V) | ≤ 0.050 | 0.02~0.06 | |||
| Niobium (Nb) | 0.025~0.050 | ||||
| Pcm | ≤ 0.25 | ||||
| Carbon Equivalent | ≤ 0.48 | ≤ 0.48 | ≤ 0.48 | ≤ 0.43 | ≤ 0.48 |
| ASTM A694 Grade | Yield Strength min. | Tensile Strength min. | Elongation min. | ||
| MPa | ksi | MPa | ksi | % | |
| A694 F42 FLANGES | 290 | 42 | 415 | 65 | 20 |
| A694 F46 FLANGES | 315 | 46 | 415 | 60 | 20 |
| A694 F48 FLANGES | 330 | 48 | 425 | 62 | 20 |
| A694 F50 FLANGES | 345 | 50 | 440 | 64 | 20 |
| A694 F52 FLANGES | 360 | 52 | 455 | 66 | 20 |
| A694 F56 FLANGES | 385 | 56 | 470 | 68 | 20 |
| A694 F60 FLANGES | 415 | 60 | 515 | 75 | 20 |
| A694 F65 FLANGES | 450 | 65 | 530 | 77 | 20 |
| A694 F70 FLANGES | 485 | 70 | 565 | 82 | 18 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Marzouk Steel is one of the most prominent manufacturers and suppliers of superior quality Carbon Steel A694 Flanges in Tunis, Tunisia. As experts in steel solutions, we supply a complete spectrum of products like Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our product range comprises Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Known for our reliable delivery and first-rate customer service, we are committed to supplying high-quality steel materials that guarantee durability and excellent performance in numerous industrial applications.Â

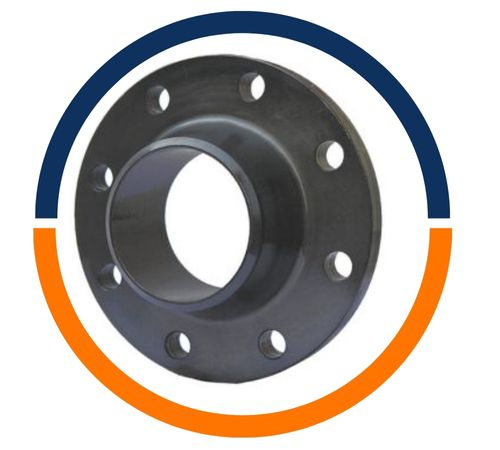

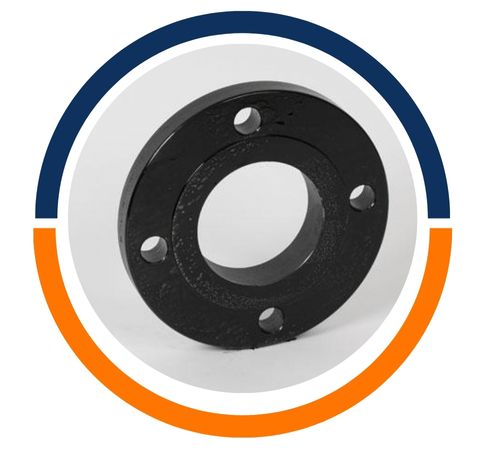

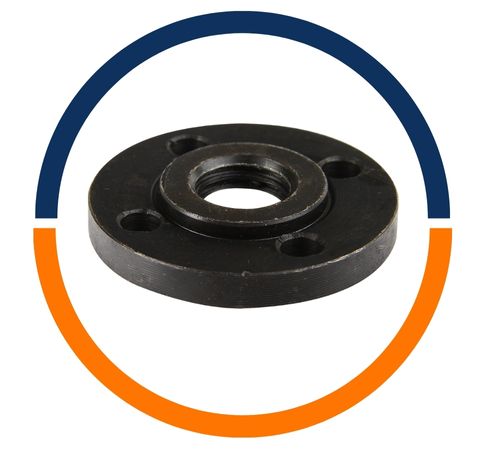

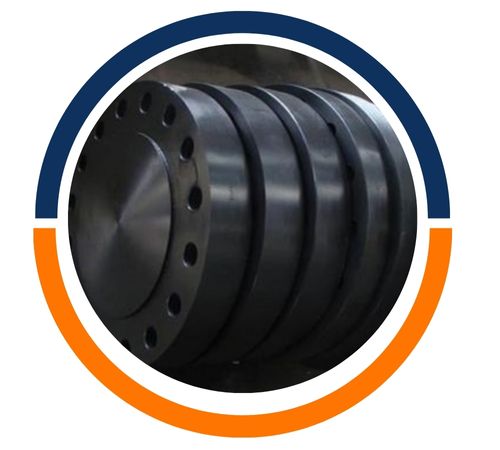

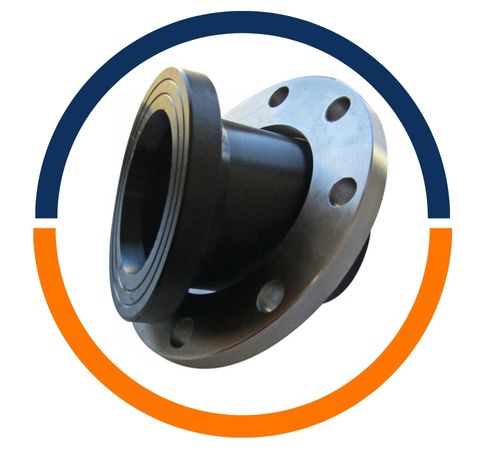

| ASME/ANSI B 16.5 | Welding Neck, Slip on, Blind, High Hub Blind, Socket Weld, Lap Joint, Threaded, Ring Type Joint Flanges |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | Welding Neck, Blind [Series A & B] Flanges |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | Welding Neck, Slip on, Threaded Flanges |
| PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
| BS 4504 SEC 3.1 | Welding Neck, Hubbed Slip on, Hubbed Threaded, Lapped Pipe End, Plate, Loose Plate, Loose Plate With Weld Neck, Blank Flange |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Welding Neck, Hubbed Slip-On Hubbed Threaded, Plate, Loose Plate With Weld On Plate Collar, Blank Flange |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Welding Neck, Socket Welding, Slip-On, Blind, Screwed Boss, Lapped Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| BS10 | Welding Neck, Plate Slip-On, Screwed Boss, Slip-On Boss, Blind Flange |
| TABLE | D, E, F, H |
| DIN Flange | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
| Standard | Class | Diameter | Bolt Circle Diameter | Number of Bolts | Bolt Size | Diameter of Bolt Hole |
|---|---|---|---|---|---|---|
| AS4087 | PN14 | 95 | 67 | 4 | M12 | 14 |
| AS 2129 Flange | Table C | 95 | 67 | 4 | 13 | 14 |
| Table D | 95 | 67 | 4 | 13 | 14 | |
| Table E | 95 | 67 | 4 | 13 | 14 | |
| Table F | 95 | 67 | 4 | 13 | 14 | |
| Table H | 114 | 83 | 4 | 16 | 17 | |
| Table J | 114 | 83 | 4 | 16 | 17 | |
| ANSI B16.5 | ANSI 150 | 89 | 60 | 4 | 13 | 16 |
| ANSI 300 | 95 | 67 | 4 | 13 | 16 | |
| ANSI 600 | 95 | 67 | 4 | 13 | 16 | |
| ANSI 900 | 121 | 83 | 4 | 19 | 22 | |
| ANSI 1500 | 121 | 83 | 4 | 19 | 22 | |
| ISO 7005 (DIN) Flange | PN6 | 80 | 55 | 4 | M10 | 11 |
| PN10 | 95 | 65 | 4 | M12 | 14 | |
| PN16 | 95 | 65 | 4 | M12 | 14 | |
| PN20 | 90 | 60.5 | 4 | M14 | 16 | |
| PN25 | 95 | 65 | 4 | M12 | 14 | |
| PN40 | 95 | 65 | 4 | M12 | 14 |
These Carbon Steel A694 Flanges find extensive use across the oil and gas, petrochemical, and industrial sectors. They’re commonly utilized in pipeline systems, refineries, pressure vessels, and other high-pressure environments where strength and durability are paramount. Additionally, these flanges are well-suited for water, chemical, and power transmission pipelines. Their blend of toughness, high strength, and reliability makes A694 flanges perfect for demanding and heavy-duty industrial applications.
Â
Â
Marzouk Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Tunis, Tunisia.
