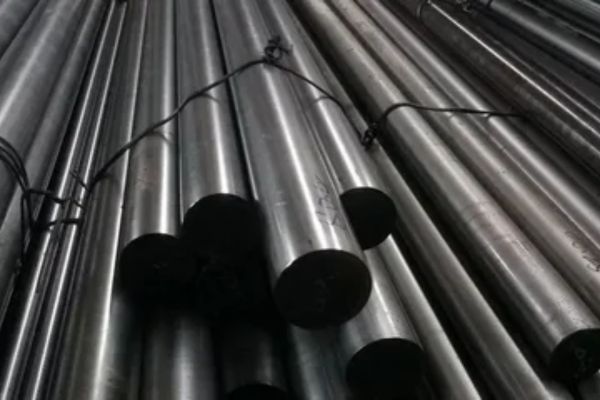

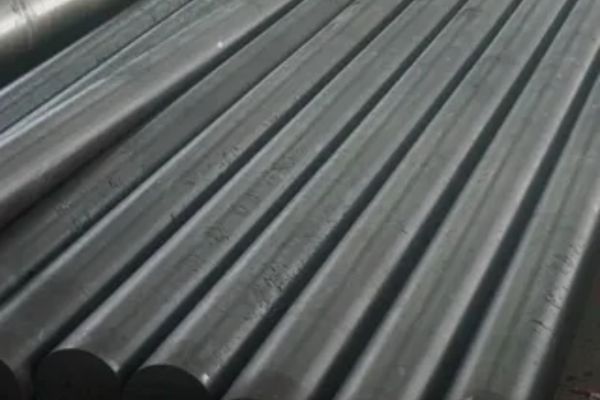

Marzouk Steel, located in Tunis, Tunisia, stands out as a top manufacturer and supplier of carbon steel EN-31 bars, catering to the automotive, engineering, and industrial sectors. With state-of-the-art manufacturing facilities and a commitment to strict quality control, Marzouk Steel guarantees high precision, consistent mechanical properties, and a superb surface finish. The company offers customized bar sizes, prompt delivery, and dependable technical support. Their EN-31 bars are specifically crafted for applications that demand high hardness, wear resistance, and strength, making them the perfect choice for tools, dies, shafts, and other industrial components where durability and performance are essential.
Carbon Steel EN-31 Bars contain predominantly carbon, manganese, silicon, chromium, and minor sulfur and phosphorus. The composition of the normal chemical consists of 0.90-1.10% carbon, 0.30-0.50% manganese, and 0.80-1.10% chromium, and they are responsible for the hardness along with the resistance to wear of the material. The mechanical specifications are high tensile strength between 850-1000 MPa, fine hardness (58-63 HRC), and good fatigue, and hence suitable for heavy usage. These bars provide superior wear resistance, excellent dimensional stability, and durability, suitable for the production of high-performance components in automotive and engineering applications.
| Grade | En31 |
|---|---|
| Specification | 100Cr6, AISI SAE E52100, 100Cr6, 2258, 100C6 |
| Round bar size | Diameter: 3-~800mm |
| Hex Bar size | 2-100mm A/F |
| Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |

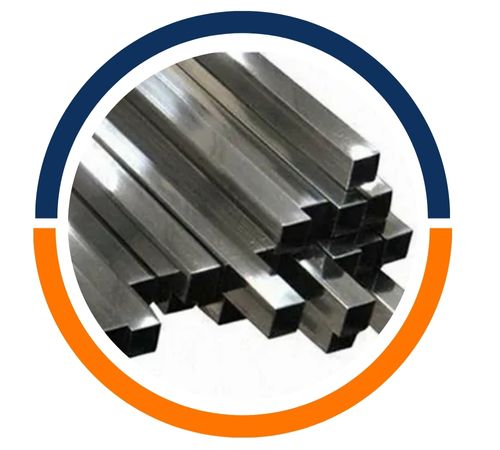

| Square bar size | 4 to 100mm |
| Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Section | 3.0 to 12.0mm thickness |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Billet Size | 1/2″ to 495mm Diameter |

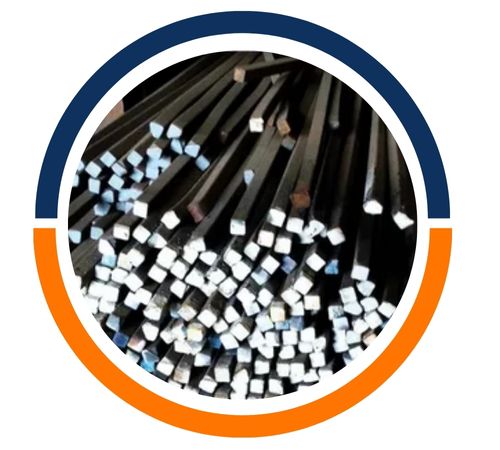

| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Finish | Cold (bright) drawn, centreless ground,smooth turned, peeled, slit rolled edge, hot rolled, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Condition | Hardened & tempered, annealed |

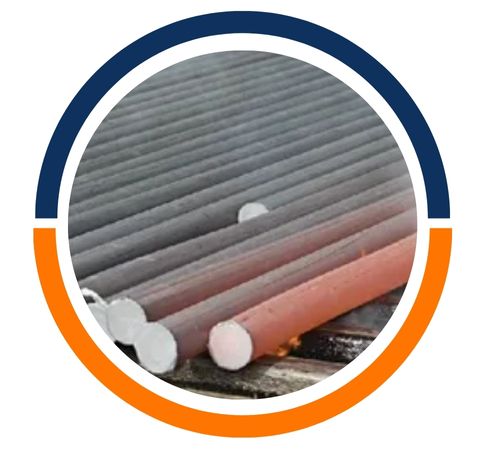

| Technique | en31 Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Processing | Bar cutting to 650mm |

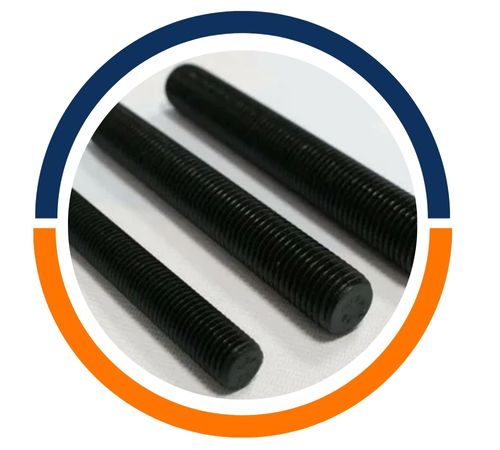

| Form | en31 Welding Rod, Round, Rod, T-Bar, Channel Bar, Precision Ground Bar, Flat Bar, Square, Blocks, Round Rod, Rings, Hollow, Triangle, Rectangle, Hex (A/F), Threaded, Half Round Bar, Profiles, Billet, Ingot, I/H Bar, Forging etc. |
| Our stockyad location for fast delivery across India | Surendranagar, Rajkot, Ranjangaon, Indore, Ahmedabad, Bhosari, Surat, Baroda, Chennai, Chakan, Hyderabad, Ahmednagar, Ajmer, Kolhapur, Thane, Belgaum, Kadi, Aurangabad, Pune, Hubli Mumbai, Nagpur, Jaipur, Nashik, Navi Mumbai |
| Carbon | 0.95 / 1.10 |
| Manganese | 0.40 / 0.70 |
| Silicon | 0.10 / 0.35 |
| Sulfur | Max 0.050 |
| Phosphorus | Max 0.040 |
| Chromium | 1.20 – 1.60 |
| Thermal Conductivity at °C | 20 | 350 | 700 |
| W/(m*K) | 44.5 | 45.0 | 46.0 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Cut to size on request (tolerance +2/-0 mm). Standard lengths of en31 Bars 2000 mm up to 6000 mm available | |||
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
These EN-31 carbon steel bars are commonly used in the production of cutting tools, dies, punches, shafts, gears, and components for industrial machinery. They excel in applications that need high hardness, abrasion resistance, and dimensional stability. Typical uses include automotive parts, precision engineering tools, and heavy-duty industrial equipment. Thanks to their impressive strength, toughness, and wear resistance, EN-31 bars deliver long-lasting, reliable performance in demanding industrial and engineering settings.
Marzouk Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Tunis, Tunisia.
